Reducing Friction in High-Speed Mixing: The Science Behind PTFE Coated Stir Bar with Pivot Ring
Introduction: The Hidden Challenge in High-Speed Laboratory Mixing
In modern chemical synthesis, pharmaceutical formulation, and biotechnology research, achieving rapid and homogenous fluid mixing without compromising sample integrity or equipment longevity remains a critical engineering goal. As laboratory automation scales and reaction volumes demand higher rotational speeds, traditional flat or cylindrical magnetic Stir Bars frequently encounter severe operational limits. At elevated RPMs, contact friction between the stir bar and the vessel floor leads to excessive wear, thermal degradation, unwanted particle shedding, and the frustrating phenomenon known as "de-coupling" or spin-out.
Hydrodynamic Mechanics: How the Pivot Ring Minimizes Friction
To understand the technical superiority of a pivot ring magnetic stirrer, one must examine the contact mechanics of liquid stirring. Traditional cylindrical stir bars rest flat against the bottom of a beaker or flask. This creates a large surface area of direct sliding contact. When rotated at high speeds, this broad surface area generates substantial frictional torque and localized heat, which can inadvertently degrade heat-sensitive reagents or cause micro-scratches on glassware.

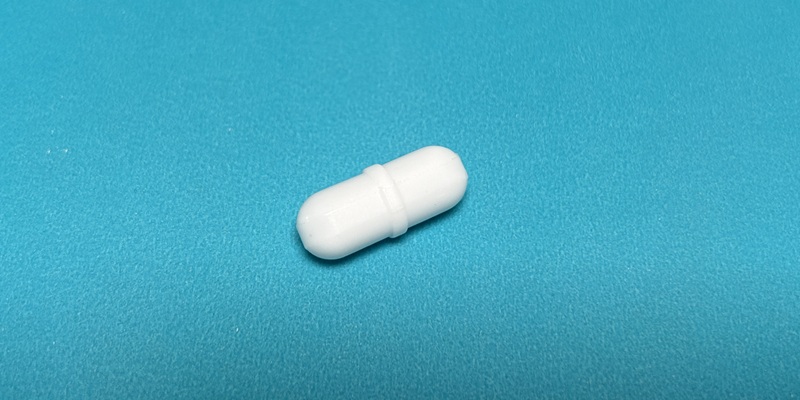

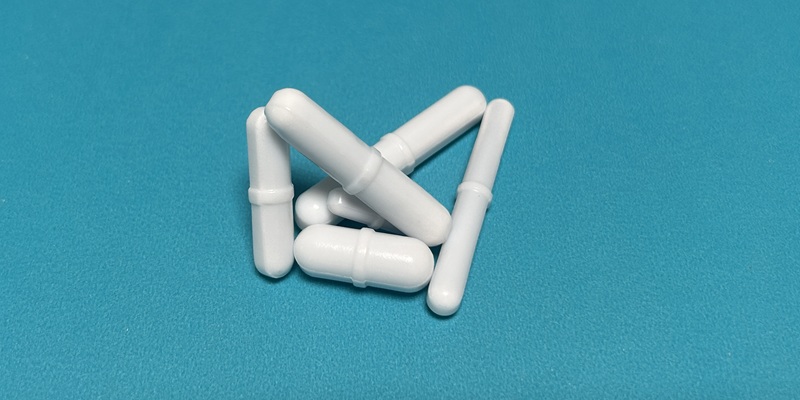

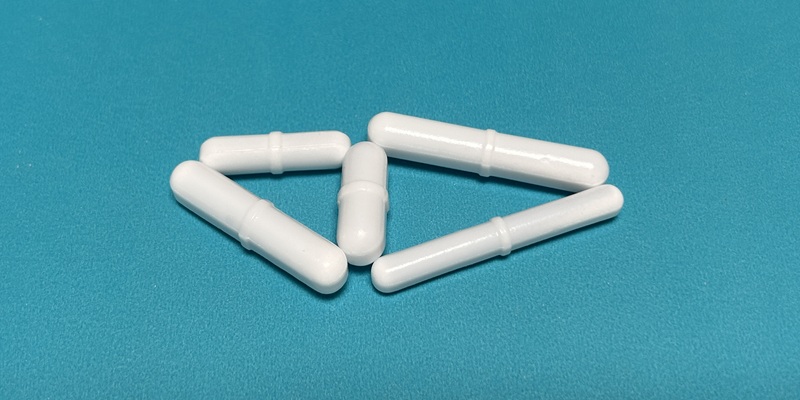

In contrast, our PTFE coated stir bar with pivot ring features a subtle, raised central collar (the pivot ring). This architectural feature transforms full-body sliding friction into minimal, single-point pivot contact:
- Reduced Surface Contact Area: The pivot ring acts as a central fulcrum, elevating the main body of the stir bar slightly above the vessel floor. This reduces total surface contact by up to 75%, resulting in a true low friction magnetic stir bar.
- Enhanced Rotational Alignment: The central fulcrum stabilizes the magnetic center of the stir bar over the drive magnet, dramatically decreasing wobble, vibration, and premature decoupling even at speeds exceeding 1,200 RPM.
- Vessel Floor Protection: By preventing the full body of the bar from scraping against glass or stainless steel vessels, the pivot ring extends both vessel life and stir bar longevity.
Material Superiority: Why Premium PTFE Matters in High-Speed Operations
A superior geometry requires an equally superior material formulation. The Chiling high speed stir bar is manufactured using ultra-high-purity Polytetrafluoroethylene (PTFE) encapsulating. PTFE is universally recognized for its extraordinary chemical inertness, displaying complete resistance to aggressive acids, strong bases, organic solvents, and oxidizing agents across an operational temperature range of -196°C to +260°C. But there are many different types of magnets, you can verify with us before placing an order.
During high-speed fluid motion, mechanical stress on the polymer shell can cause inferior plastics or low-density PTFE to deform, micro-crack, or leach trace contaminants into pure reaction mixtures. At Chiling, our strict compression molding and sintering processes ensure a seamless, non-porous fluoropolymer shell that withstands continuous high-stress rotation. As a staple among durable PTFE lab consumables, our stir bars undergo rigorous quality assurance to guarantee zero porosity, high dielectric strength, and complete compliance with international laboratory standards.
Industrial Applications & Value for B2B Procurement
For procurement managers, laboratory equipment distributors, and OEM partners, sourcing reliable laboratory consumables directly impacts operational efficiency and total cost of ownership (TCO). Unstable or easily worn stir bars result in batch failures, unscheduled downtime, and frequent replacement cycles.
Integrating Chiling’s low friction magnetic stir bar inventory delivers distinct commercial and technical advantages:
- Consistency in Viscous Media: High-speed rotation with reduced friction allows for smoother processing of viscous fluids or dense liquid-solid suspensions where standard stir bars stall.
- Reduced Replacement Frequency: The combination of high-density PTFE molding and centralized pivot wear points ensures that stir bars last significantly longer than conventional alternatives.
- Direct Factory Supply & Customization: As a direct manufacturer in China, Chiling offers scalable bulk production, customized dimensional sizing, and flexible OEM packaging to meet international market demands.
Frequently Asked Questions (FAQ)
Q1: When should I choose a Ptfe Coated Stir Bar with pivot ring over a standard flat or cylindrical stir bar?
A1: A stir bar with a pivot ring is ideal when stirring in vessels with curved or slightly uneven bottoms (such as round-bottom flasks or slightly distorted beaker bases) and during high-speed applications. The pivot ring acts as a central contact point, reducing friction, vibration, and spin-out compared to flat bars.
Q2: How does the Chiling high speed stir bar prevent decoupling (spin-out) at elevated RPMs?
A2: Decoupling occurs when friction forces exceed magnetic coupling force. By reducing contact surface area through the central pivot ring to reduce friction forces.
Q3: What custom manufacturing and OEM options does Chiling offer for B2B procurement?
A3: As a direct China manufacturer, Chiling provides custom sizing, specific magnetic core selections, custom fluoropolymer color coding, private-label branding, and tailored B2B packaging options for bulk distributors and equipment OEMs.
