Selection of Magnetic Stir Bars
When choosing a Magnetic Stir bar, it is essential to consider sample properties, container type, mixing requirements, as well as the material and shape of the stir bar. Below are the key selection factors and recommended solutions:
- Selection Based on Sample Properties
(1) Liquid Viscosity
- Low viscosity (water, ethanol, etc.):
- Recommended: Oval, cylindrical, or cross-shaped Stir Bars.
- Reason: Lightweight and stable rotation, suitable for gentle mixing.
- Medium to high viscosity (glycerol, polymer solutions):
- Recommended: Gear-shaped, or dumbbell-shaped stir bars.
- Reason: High-torque design prevents liquid "follow-rotation."
- Extremely high viscosity (resins, colloids):
- Recommended: Large gear-shaped stir bars.
(2) Sample Sensitivity
- Biological samples (cell culture, proteins):
- Recommended: Oval or dumbbell-shaped (smooth surfaces minimize shear damage).
- Avoid: Cross-shaped or gear-shaped (high shear may rupture cells).
- Corrosive/chemically active liquids:
- Recommended: PTFE (Teflon)-coated stir bars (resistant to acids, bases, and organic solvents).
(3) Solid Suspension Requirements
- Particle dispersion or suspension:
- Recommended: Cross-shaped or double-cross-shaped (enhances vortex and shear force).
- Selection Based on Container Type
- Beakers/Erlenmeyer flasks: Standard oval or cross-shaped stir bars.
- Round-bottom flasks:
- Recommended: Olive-shaped or dumbbell-shaped (fits curved surfaces, reduces bouncing).
- Small volumes (<10 mL):
- Recommended: Mini cylindrical or ringed stir bars (prevents slipping).
- Deep/narrow containers:
- Recommended: Long-axis dumbbell.
- Selection Based on Stirring Speed
- Low speed (<500 rpm): Oval or cylindrical stir bars.
- High speed (>1000 rpm):
- Recommended: Cross-shaped or gear-shaped (prevents ejection).
- Note: Requires a high-torque magnetic stirrer.
- Material Selection
- Standard materials:
- PTFE (Teflon): Corrosion-resistant, inert, suitable for most chemical experiments.
- Glass-coated: Inert but fragile, ideal for mild conditions.
- Special requirements:
- High temperature (>200°C): PTFE-coated with a metal core (e.g., stainless steel).
- Contamination prevention: Pure PTFE (no metal core, for trace analysis).

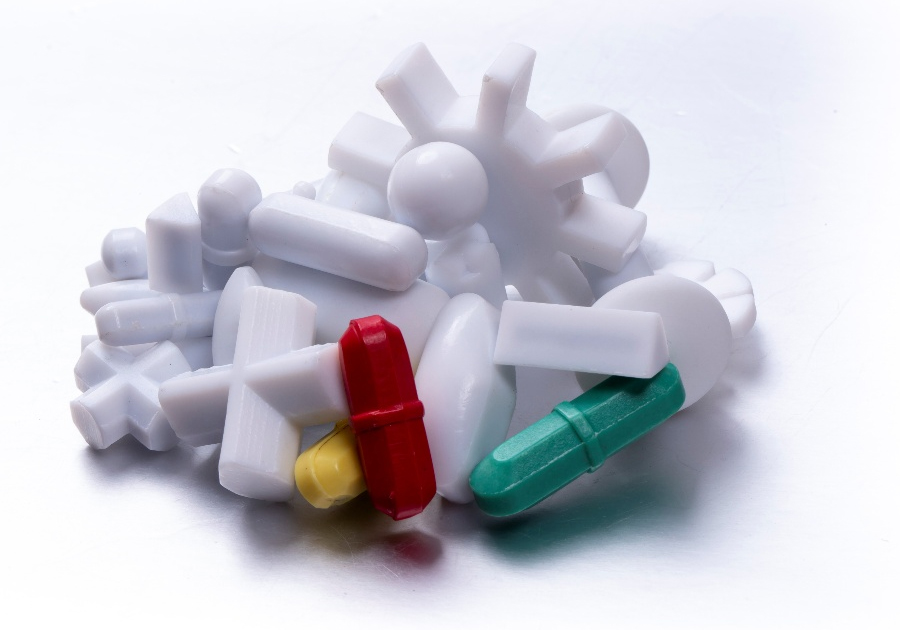

- Shape and Function Comparison Table
| Shape | Optimal Viscosity | Characteristics | Typical Applications |

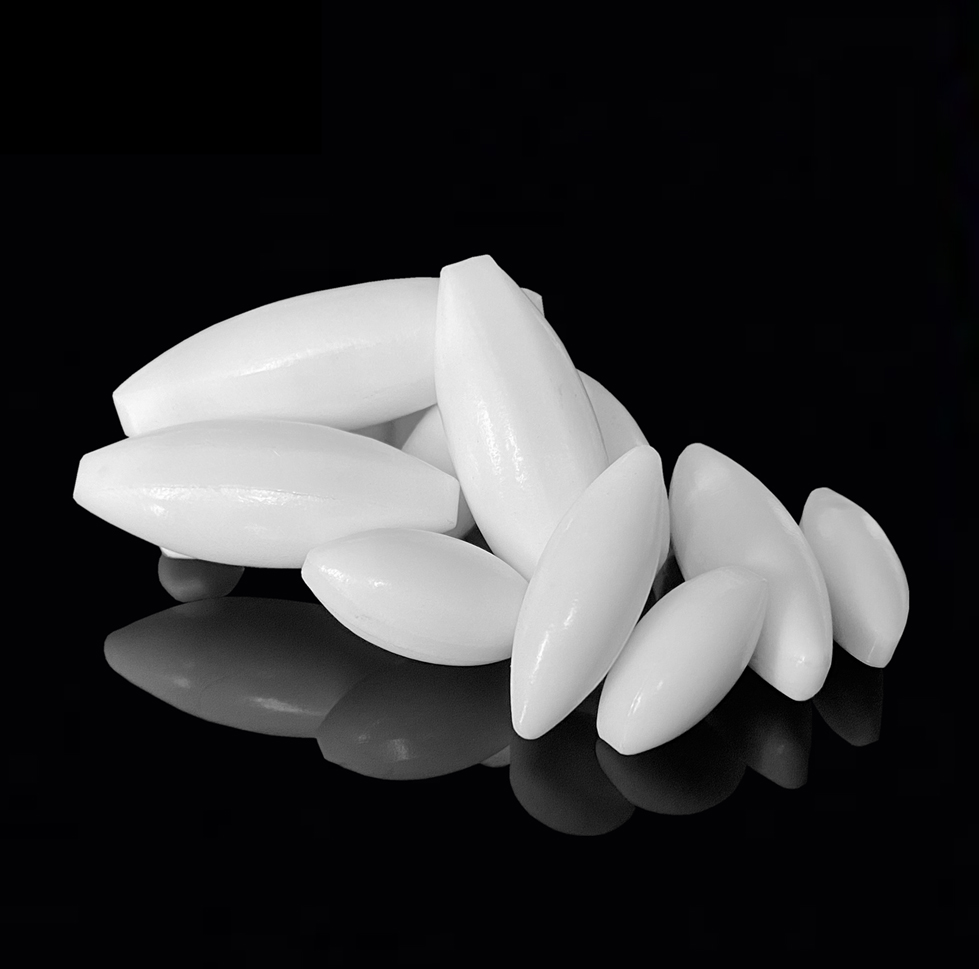

| Oval | Low-Medium | Stable, versatile | Dissolution, pH adjustment |
| Cylindrical | Low | Simple, low-cost | Temporary stirring, teaching |

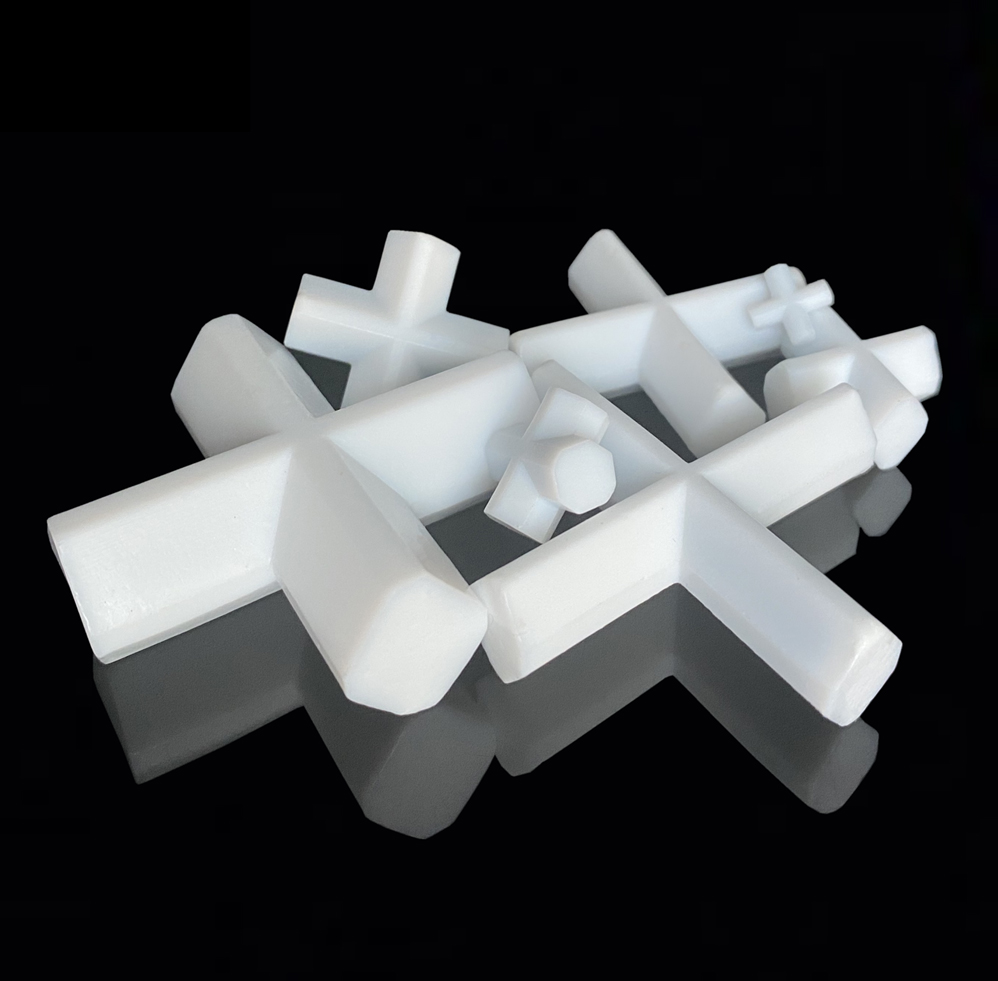

| Cross-shaped | Low-High | High shear force | Emulsification, nanoparticle dispersion |

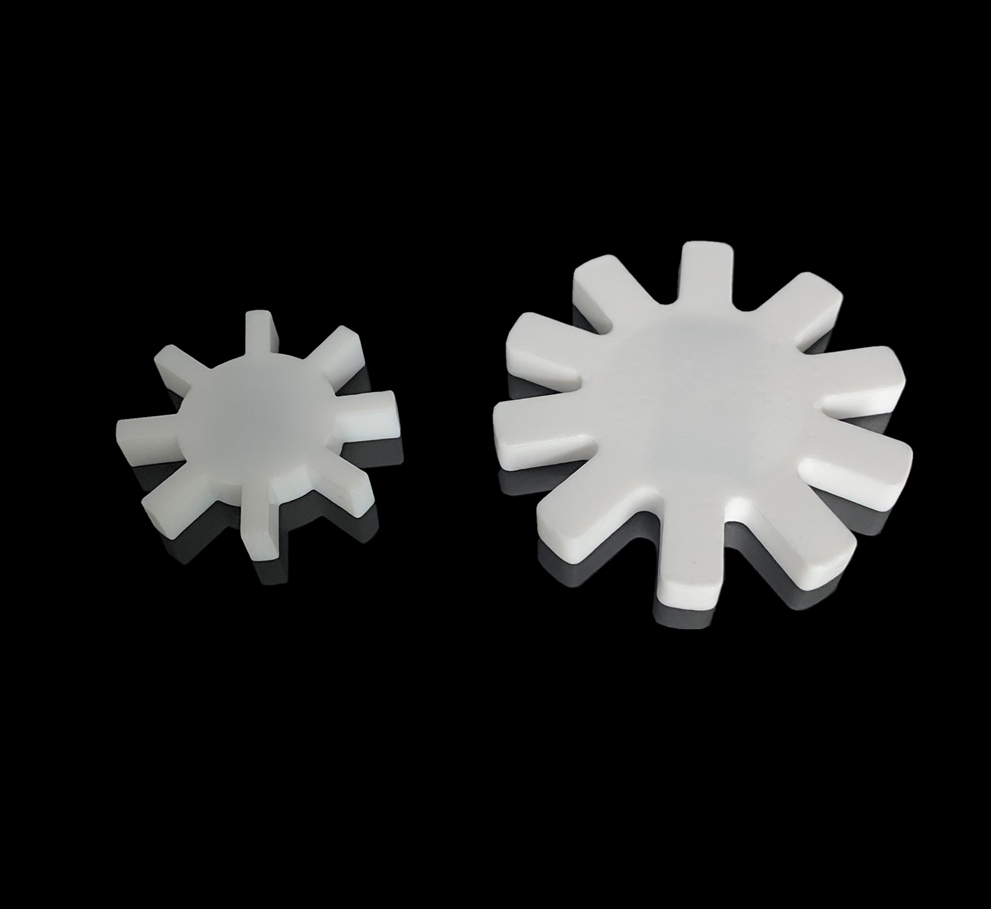

| Gear-shaped | Medium-High | High torque, anti-slip | Polymer mixing, viscous liquids |

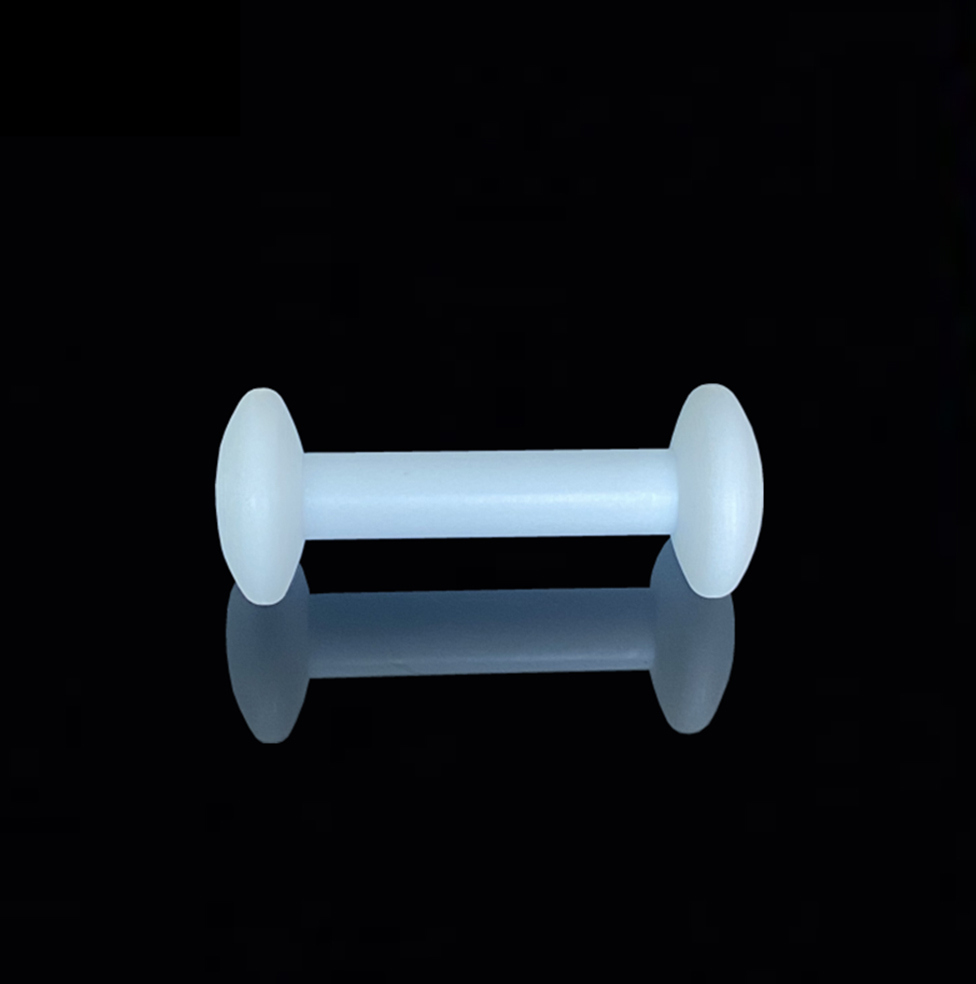

| Dumbbell | Low-High | High-speed stability | Long-term reactions, biological samples |
| Spiral | Very High | Axial flow | Resin, colloid mixing |
| Double-cross | Medium-High | Enhanced mixing | Large-scale suspension systems |
- Additional Considerations
- Anti-jump design: Choose stir bars with grooves or rings (e.g., ringed cylindrical) to prevent ejection at high speeds.
- Color coding: PTFE stir bars often come in different colors (white, green, yellow, red) for size/material distinction, though chemical properties remain the same.
- Size matching: The stir bar length should be ~1/3 to 1/2 of the container’s base diameter (too large causes collisions, too small reduces efficiency).
Summary Recommendations
- General lab use: PTFE oval stir bar (most versatile).
- High-viscosity liquids: PTFE gear-shaped.
- Biological applications: PTFE dumbbell-shaped (minimizes shear damage).
- Strong acids/bases: Full PTFE (no metal core) stir bars.
Choosing the right stir bar can significantly improve experimental efficiency and reproducibility. Test different options based on your specific needs!
