Packaging Details |
1. Standard carton package 2. Support customization |
|
Port |
Ningbo/ Shanghai |
|
Model No. |
Upper dia.(mm) |
Middle dia.(mm) |
Bottom dia.(mm) |
Height（mm） |
Hole dia. (mm) |
|
CL-P14 |
16 |
14.5 |
12.5 |
42 |
8 |
|
CL-P19 |
20 |
19 |
16.5 |
46 |
8 |
|
CL-P24 |
25 |
24 |
21.5 |
47 |
8 |
|
CL-P29 |
31 |
29 |
26.5 |
50 |
8 |
|
CL-P34 |
35 |
34 |
31.5 |
51 |
8 |
|
CL-P40 |
40.5 |
40 |
36.5 |
53 |
8 |
|
CL-P45 |
45 |
44.5 |
40.5 |
57 |
8 |
|
CL-P50 |
50.5 |
50 |
46 |
60 |
8 |

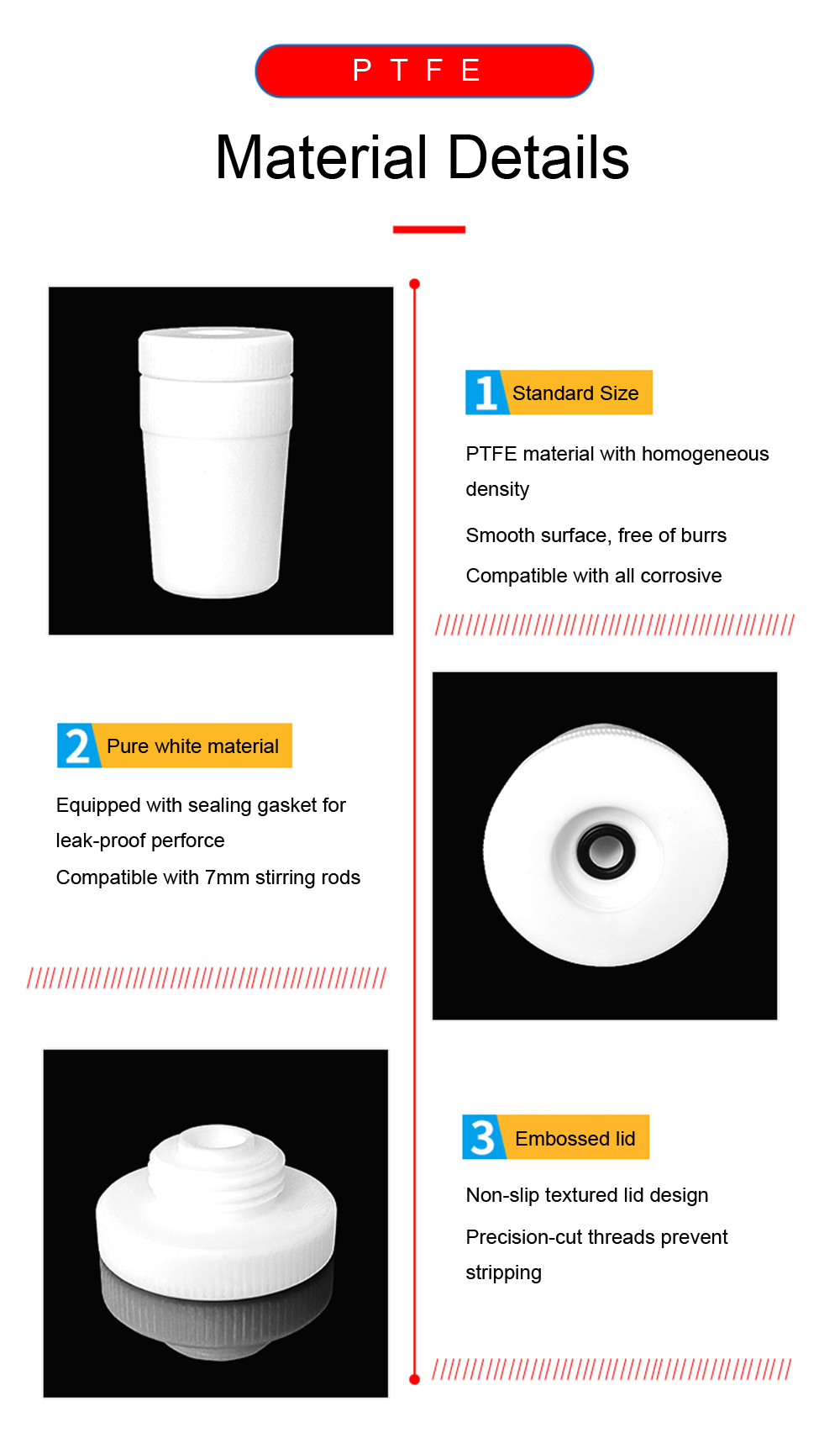

1. Material: PTFE
2. Capacity: Different Sizes
3. Color: Pure White

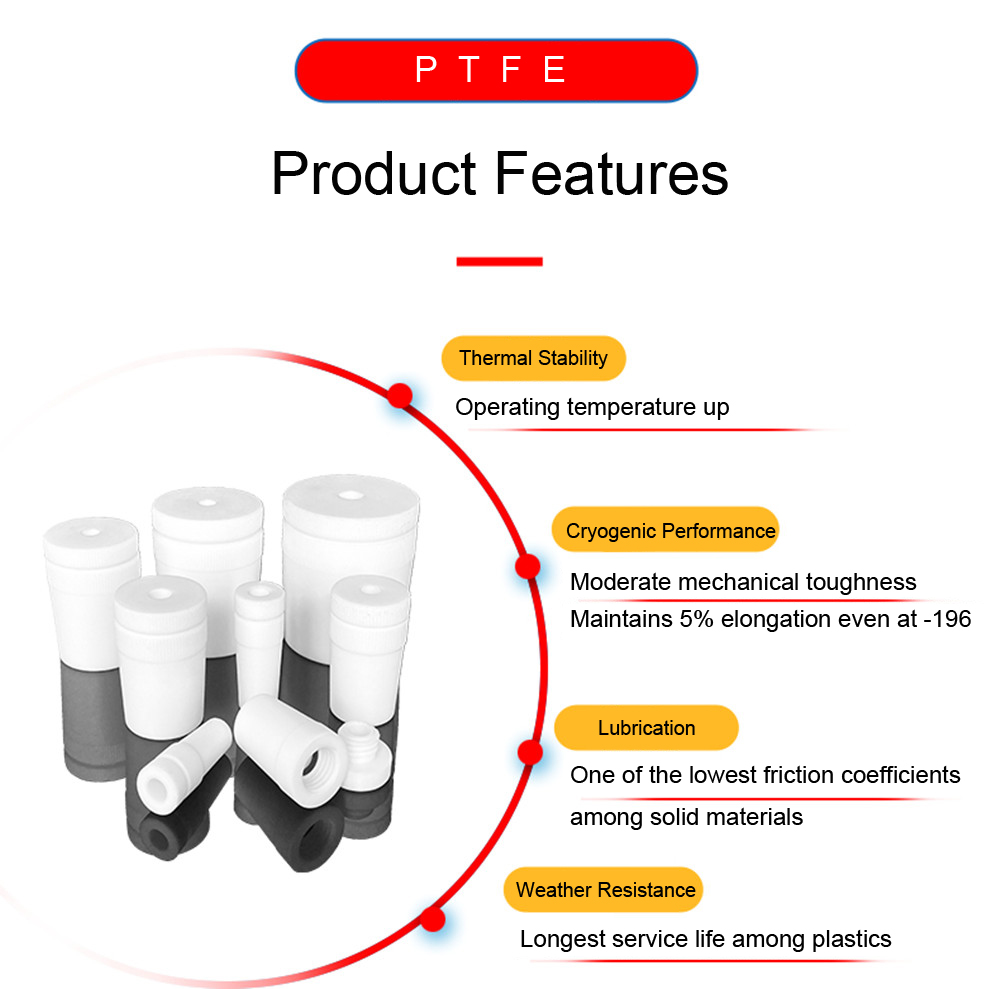

4. Working temperature:- 196℃~ +260℃
5. Has the smallest surface tension of any solid material, does not adhere to any substance
6. It has good mechanical toughness, the lowest friction coefficient among solid materials, and a long aging resistance life.
