Model |
PY-VM-200 |
Control |
Knobs |
Circumference Diameter |
3mm |
Oscillation Mode |
Circular |
Operation Mode |
Continuous operation or inching |
Speed Range |
0-3000rpm(Adjustable) |
Rotational speed display |
Digital display |
Motor type |
Brushless DC |
Input Power |
DC 12V/2A |
Power |
20W |
Overall Dimensions |
120 x 160 x 170mm |
Net Weight |
2.84kg |
BX-100

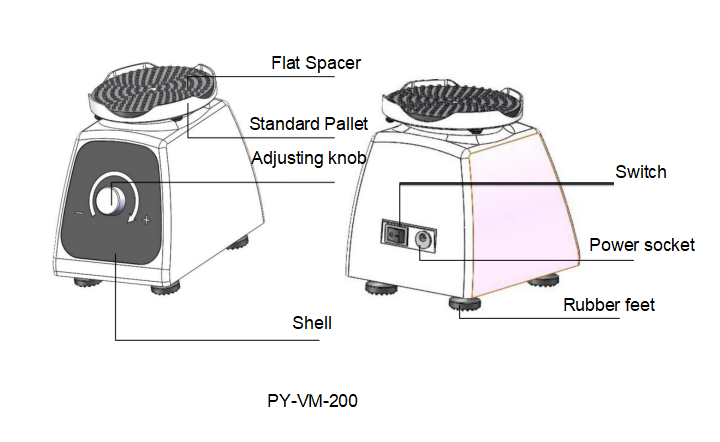

Schematic Diagram of Structure
4.1. Accessory Optional
Number |
Diagram |
Description |
HS-A |
|
Standard head, used for test tubes and small containers with a diameter less than 30mm. |
HS-J |
|
Standard plastic pallet. |
|
HS-B |
|
Pallet spacer, used in conjunction with the standard plastic pallet, for test tubes or small containers with a diameter less than 108mm. |
|
HS-D |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 0.2ml test tubes, with 96 holes each having a diameter of φ5mm. |
|
HS-K |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 0.5ml test tubes, with 48 holes each having a diameter of φ6.6mm |
|
HS-C |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 1.5/2.0ml test tubes, with 24 holes each having a diameter of φ9.8mm. |
|
HS-F |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 15ml test tubes, with 8 holes each having a diameter of φ14mm. |
|
HS-G |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 50ml test tubes, with 4 holes each having a diameter of φ26.2mm. |
|
HS-E |
|
Foam module, used in conjunction with the standard pallet, for placing 1.5/2.0/0.5/0.2ml test tubes, φ9.8mmX12pcs, 6.6mmX12pcs,φ5mmX16pcs. |
|
HS-L |
|
8-strip 0.2ml test tubes. |
