Product name |
Multi-function Vortex Mixer |
Model |
BX-100 |
Control display mode |
Touch LCD display |
Circumference diameter |
3mm |
Mode of oscillation |
Circular |
Mode of operation |
Continuous operation or spot movement |
Temperature control accuracy |
400-3000rpm |
Timing range |
0-99m59S |
Input power supply |
220VAC |
Power |
20W |
Overall dimension |
W120mm X D160mm X H175mm |
Net Weight |
2.8kg |

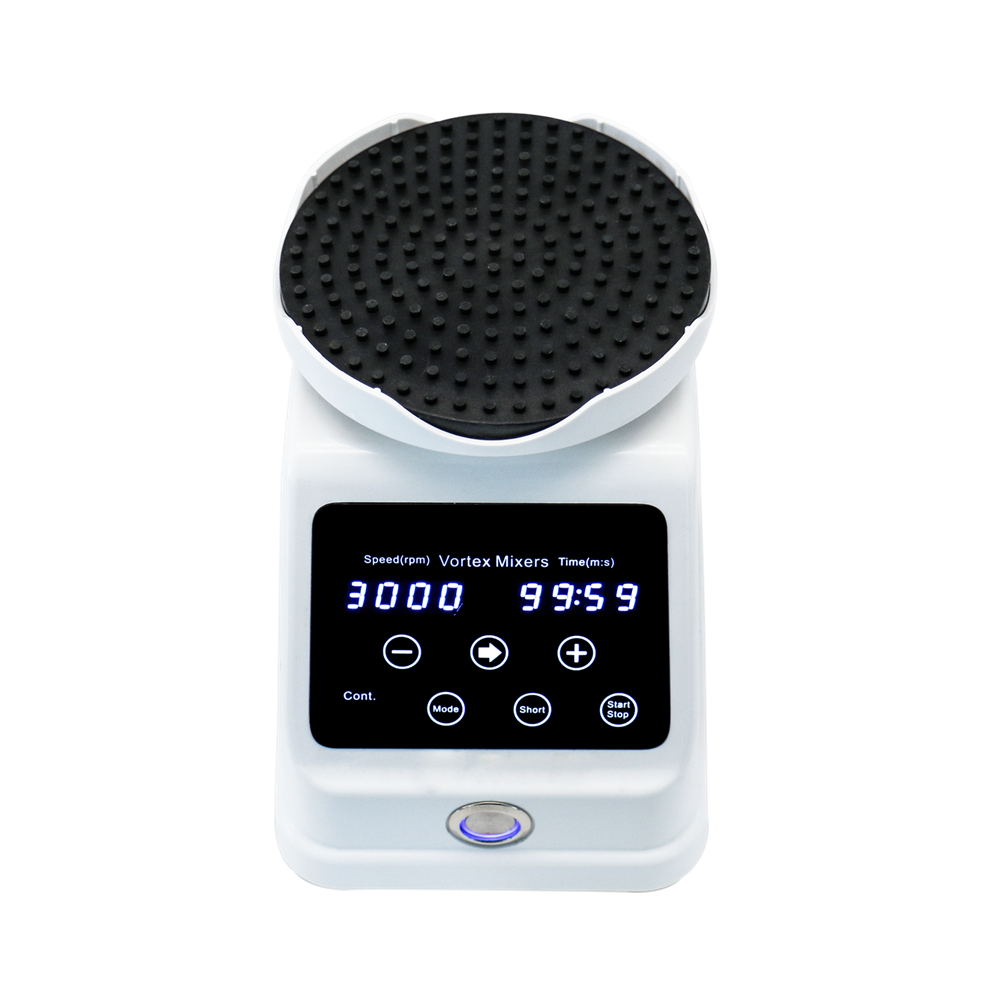

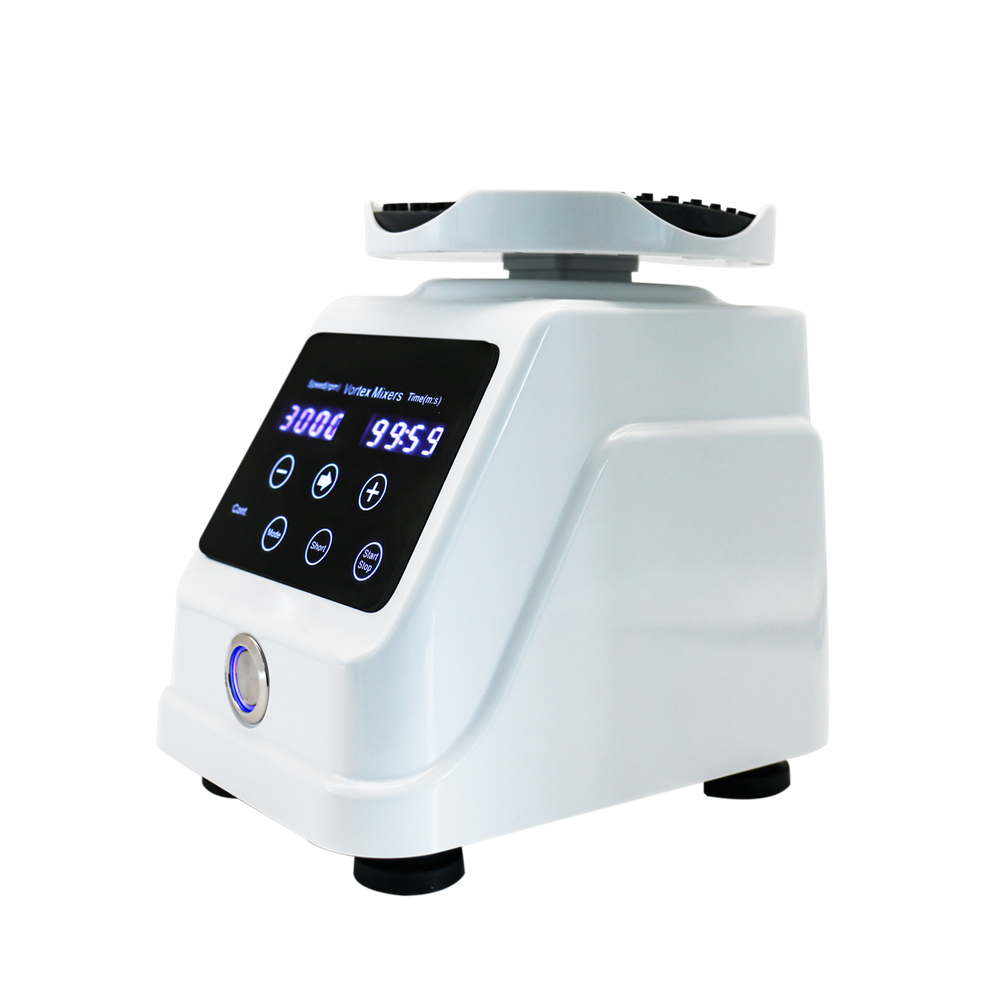

BX-100
The mini vortex mixer is applied in the fields of life sciences and physical & chemical analysis. It is used for the oscillation, mixing and stirring of samples such as tissues, cells, bacterial solutions and chemical reagents. A variety of adapters can be applicable to 0.2 - 50ml microtubes, microplates, test tubes or small containers (such as beakers) with a diameter less than 108mm, as well as various optional brackets.

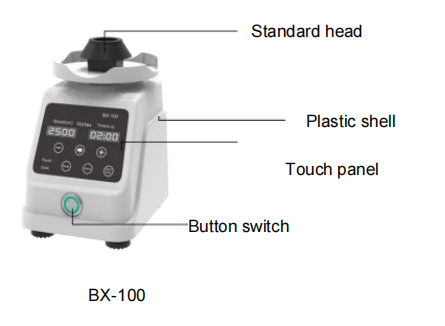

Schematic Diagram of Structure
Button |
Instruction |
|
 |
 |
Tap the “plus” or “minus” keys to modify the rotation speed and time. Long press them to adjust quickly. |
|
Tap the “arrow” key to switch the adjustment type. |
|
|
Tap the “Mode” key to switch the operation mode. |
|
|
Tap the “Shot” key to start the instrument in inching operation. |
|
|
Tap the “Start/Stop” key to start and stop the instrument. |
|
1. Chiling Lab Strong Stir Bar Magnet With PTFE Coating Magnetic Stirrer A/B/C Laboratory
2. PTFE Magnetic Cylindrical Type A Magnetic Vibrator Stirring White Rotary Rod is designed for efficient and reliable mixing in a variety of laboratory applications. This innovative stir bar has a cylindrical shape that enhances fluid dynamics and ensures thorough mixing of solutions. Its PTFE coating offers excellent chemical resistance to a wide range of solvents, acids and alkalis.
3. Ideal for chemical synthesis, pharmaceuticals and environmental testing, this stir bar allows precise control of mixing speed and pattern. The magnetic design ensures seamless operation with the magnetic stirrer, providing consistent and uniform results. Due to the white color of the wand, users can easily monitor the mixing process, thereby enhancing visibility of different solutions.
4.1. Accessory Optional
Number |
Diagram |
Description |
HS-A |
|
Standard head, used for test tubes and small containers with a diameter less than 30mm. |
HS-J |
|
Standard plastic pallet. |
|
HS-B |
|
Pallet spacer, used in conjunction with the standard plastic pallet, for test tubes or small containers with a diameter less than 108mm. |
|
HS-D |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 0.2ml test tubes, with 96 holes each having a diameter of φ5mm. |
|
HS-K |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 0.5ml test tubes, with 48 holes each having a diameter of φ6.6mm |
|
HS-C |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 1.5/2.0ml test tubes, with 24 holes each having a diameter of φ9.8mm. |
|
HS-F |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 15ml test tubes, with 8 holes each having a diameter of φ14mm. |
|
HS-G |
|
Foam module, used in conjunction with the standard plastic pallet, for placing 50ml test tubes, with 4 holes each having a diameter of φ26.2mm. |
|
HS-E |
|
Foam module, used in conjunction with the standard pallet, for placing 1.5/2.0/0.5/0.2ml test tubes, φ9.8mmX12pcs, 6.6mmX12pcs,φ5mmX16pcs. |
|
HS-L |
|
8-strip 0.2ml test tubes. |
